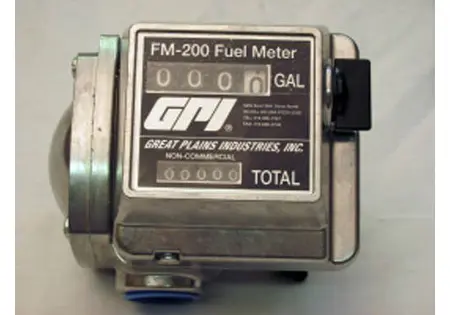

Mechanical Fuel Meter with strainer for gallons with 1 inch NPT inlet/outlet. UL Listed. 4 to 20 GPM (15 to 75 LPM). 3-digit display. 50 PSIG/3.4 bar. P.O.P. box. 3.5 lbs., 1.6 kg.

Features

• Model: FM-200-G8N
• Inlet: 1 Inch
• Outlet: 1 Inch
• Flow Range: 4 to 20 gpm, 15 to 75 lpm
• Use with: Diesel fuel (biodiesel blends B20), Gasoline (alcohol blends E15), Kerosene
• Standard: UL Listed on NPT Models / CE Listed on BSPP Models
• Design Type: Nutating Disc
• Fitting Type: NPT
• Accuracy: 3 %
• Operating Pressure: 3.4 bar, 50 psig
• Reads: Gallons
• Do not use with: Water or Chemicals
• Construction: Aluminum
• Display Type: Mechanical
• Max Batch Digits: 4
• Max Cumulative Digits: 5
• Unique Feature: Quick access to the internal strainer makes cleanup easy.
• Warranty: 2 Years
