Per Regal Systems, use a simple formula to see your maximum flow rate of water or wastewater in a day with your target chlorine dosage needed. The formula is lbs./day chlorine - (0.012) X (flow rate in US gpm) X (dosage in ppm). You need to allow for an oversizing safety factor of at least twice the required dosage rate of chlorine.

So for example if you need 2 ppm dosage of chlorine for a water treatment station pumping up to 1000 gpm, that breaks down to: 24 lbs./day = .012 X 1000 gpm X 2 ppm. Doubling that for safety equals 50 lbs./day needed from a gas chlorinator.

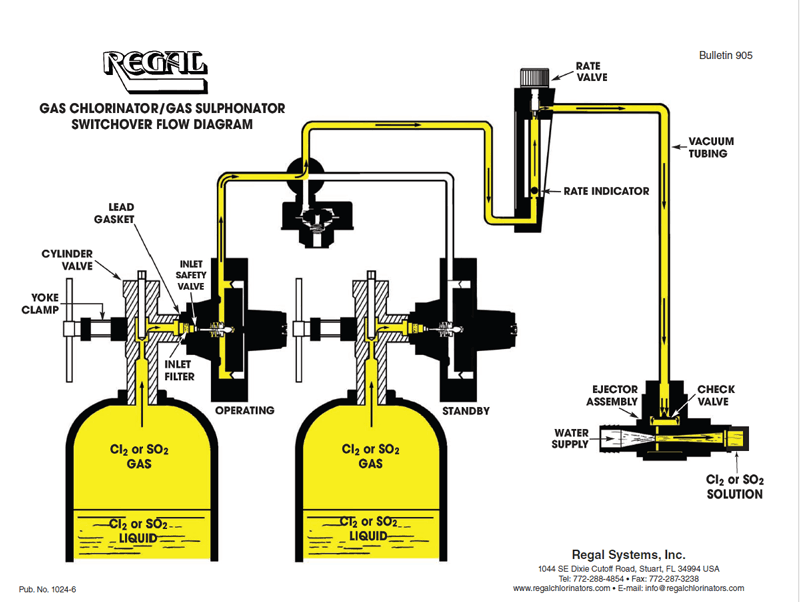

The standard gas chlorinators are manually switched out when service is needed while the switchover system design features a back-up chlorinator so there is continuous chlorination even if one of the chlorinators need maintenance.

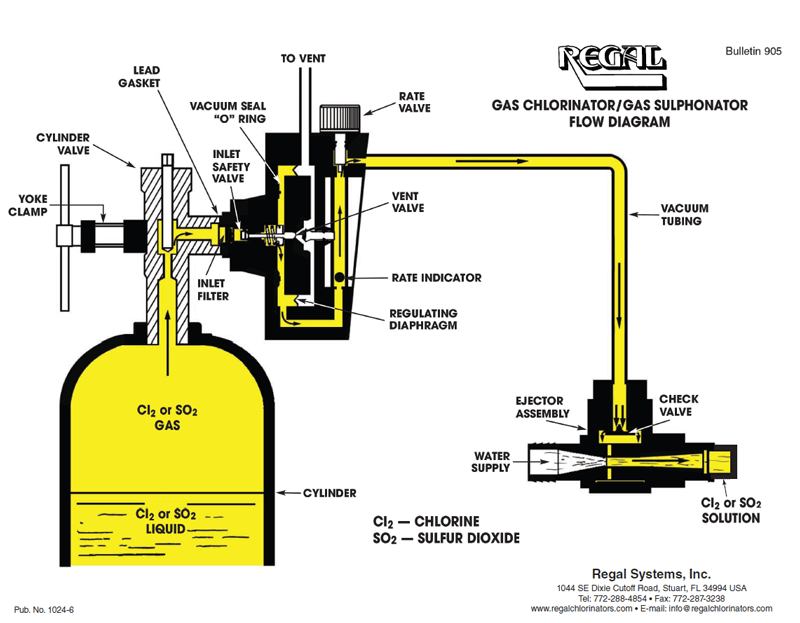

The flow diagrams below show the standard unit and switchover unit.

Because a vacuum is needed for the gas chlorine to flow, the risk from leaking is minimized since that would result in the vacuum pressure stopping.

Yes, our parts specialists are available by phone at +1 (800) 346-7867 to walk you through installing the gas chlorinator system or replacing a part to make sure you get the support you need to set things up correctly.
